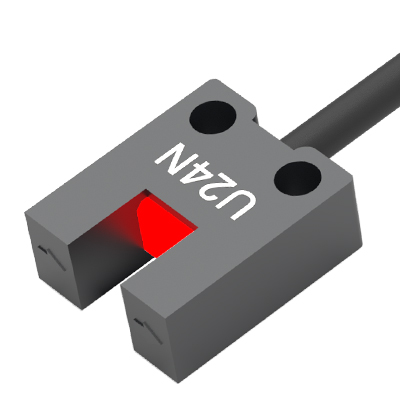

| Model | U24N |
|---|---|
| Output type | NPN output |
| Detect objects | 1.2x0.8mm opaque object |
| Detection distance | 5mm groove width |
| Response frequency | 2KHZ |
| Repeatability | 0.03mm or less |
| Light | Action display light (red) |
| Protection circuit | Surge protection circuit, reverse polarity protection |
| Action form | Two independent outputs (ON when shading, ON when entering light) |
| Supply voltage | DC5-24V |
| Light source | GaAs infrared light-emitting diode (940nm) |
| Ambient temperature | When operating: -25-+70°C When storing: -40-85°C (no freezing, no condensation) |
| Connection method | Conductor exit type (standard conductor length 2M) |
Functional features: ultra-small size, strong anti-interference performance, high response frequency
Detection distance: slot width 5mm
Output mode: NPN, Light.on (light action) and Dark.on (shading action) can be selected
